When the required Test Scripts are ready and the complete Test Suite for a PCB is created go to Test to test the production PCBs.

Insert the assigned Test Head(s) on the production PCBs.

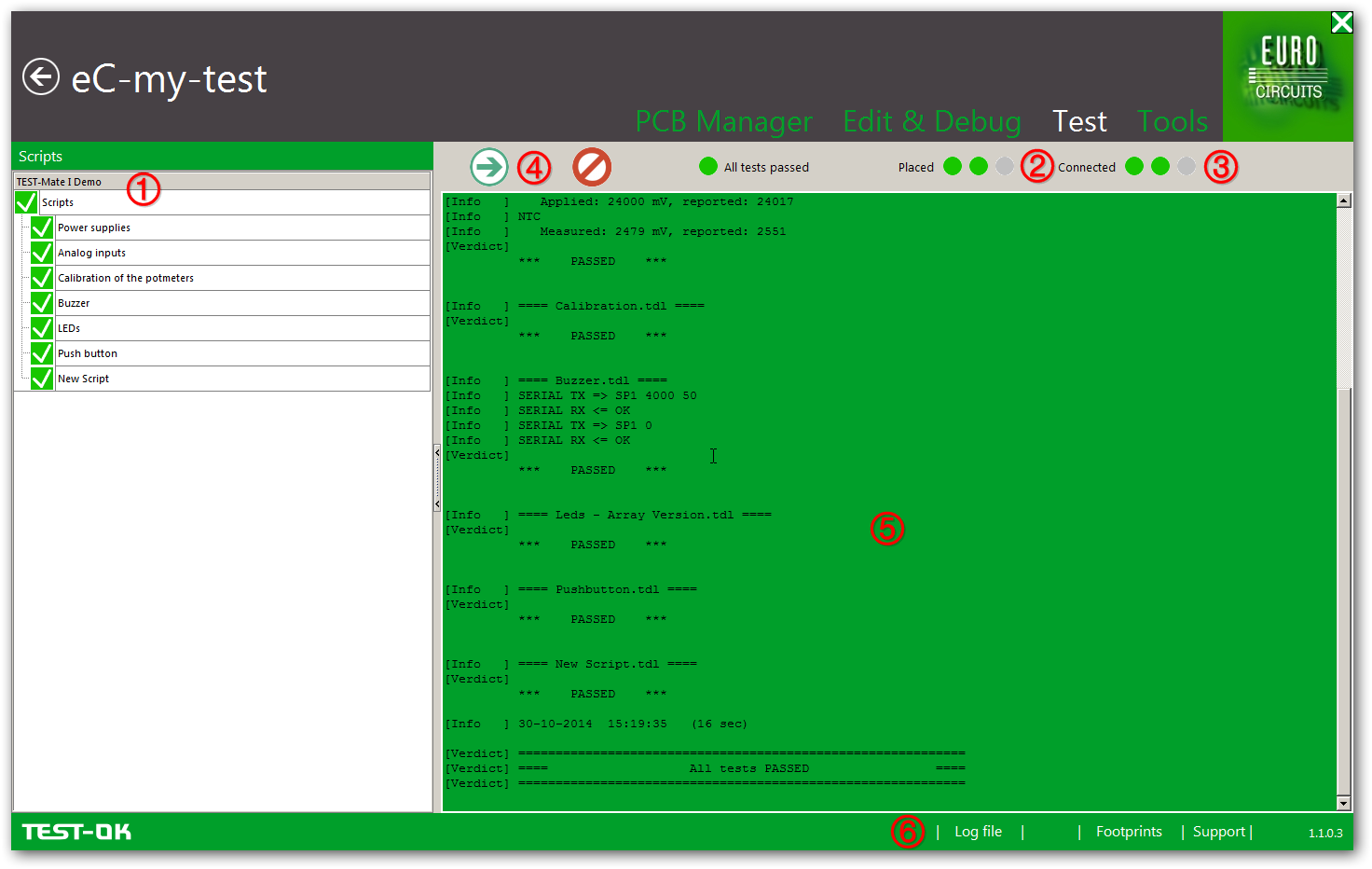

Activated Test Scripts from the Edit & Debug screen will appear in the Scripts section of the Test screen (1).

See how Test Head T1 is placed on the PCB (2) and connected (3). Click on the Run Test Button (4) to run a production test.

All test results appear on the the Log screen (5) and turn green when passed correctly.

With the Log file (6) a .txt file of the outcome can be generated and you can clear the screen for the next test.
